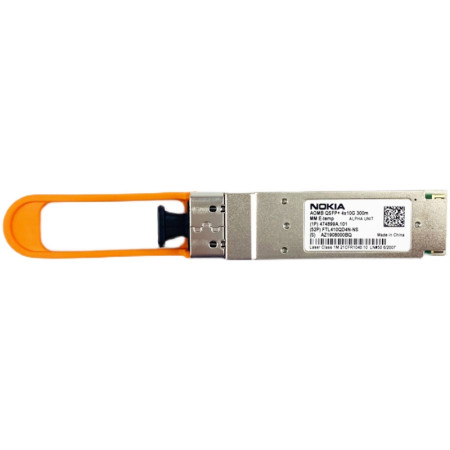

[474899A-101] Nokia QSFP+ 4x10G 300m 850nm MM E-Temp Transceiver Module FTL410QD4N-NS

Features
Genuine Nokia 474899A.101
Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1W
Reliable VCSEL array technology
Built-in digital diagnostic functions, including Tx and Rx power monitoring
Extended operating case temperature range -5°C to 85°C
Single 1×12 MPO receptacle
RoHS compliant

Applications
40GBASE-SR4 40G Ethernet
Breakout to 10GBASE-SR Ethernet
Proprietary interconnections

Specifications
Part Number: 474899A.101
MPN: FTL410QD4N-NS
Form Factor: QSFP+
Data Rate (max): 41.2 Gb/s
Distance: 300 m
Protocol: 10x Fibre Channel Compliant 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C): -5
High End Case Temperature (°C): 85
Diagnostics: Digital
Transmitter: 4x VCSEL
Receiver: PIN
Voltage Supply: 3.3
Connector: MPO (MTP12)
Wavelength: 850nm Band
