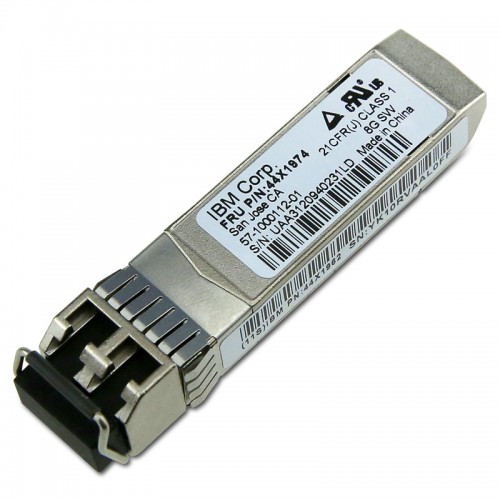

[44X1962] IBM 44X1962 44X1970, 44X1974 8Gb SFP+ SW Optical Transceiver

Features

Genuine IBM 44X1962
Up to 8.5 Gbps Bi-directional Data Links
Metal enclosure, for lower EMI
Build-in Digital Diagnostics Monitoring (DDM)
Single 3.3V power supply
Specifications

Form Factor: SFP+
Max Data Rate: 8.5Gbps
Wavelength: 850nm
Max Cable Distance: 150m @ 8.5Gbps
Connector: LC duplex
Optical Components: VCSEL 850nm
Media: MMF
DOM Support: Yes
TX Power: -6~-1dBm
Receiver Sensitivity: <-11.1dBm
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Protocols: MSA Compliant
