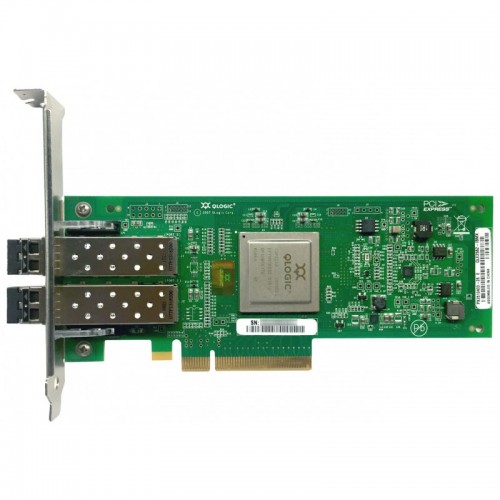

[42D0510] IBM 42D0510 42D0516 QLogic 8Gb FC Dual-port HBA for System x

Features

The QLogic 8Gb FC host bus adapters have the following features:

Based on the QLogic QLE2560 (single port) and QLE2562 (dual port) adapters
Function at 8/4/2 Gbps (auto-negotiation)
Persistent binding
LUN masking
2,048 concurrent logins
PCI Express 2.0 x8 compliance, backwards compatibility with PCI-e 1.0a
Two (for Dual-port) or one (for Single-port) SFP+ with LC-style connectors
Standard PCI Express card with low profile MD2 form factor
Support for both standard and low-profile PCI-E slots
Specifications

The QLogic 8Gb FC host bus adapters have the following specifications:

Data rate: 1600 MBps full duplex per port
Performance: up to 200,000 IOPS per port
Boot support: BIOS, FCode, UEFI, EFI
Protocols: FCP-3-SCSI; FC-Tape (FCP-2)
Standard supported: Enhanced Authentication (FC-SP), Data Integrity (T10) and Network isolation (NPIV)
