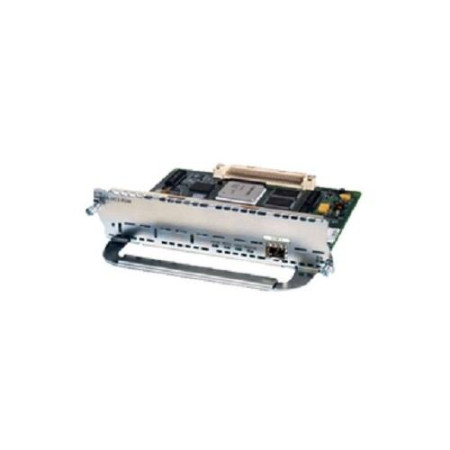

[NM-1A-OC3SMI-EP] Cisco 1-Port OC-3 ATM Enhanced Network Module - 1 x OC-3c/STM-1

General
Device Type Expansion module
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Cabling Type Fiber optic
Data Link Protocol ATM
Data Transfer Rate 155 Mbps
Max Transfer Distance 9.3 miles
Line Rate OC-3c/STM-1
Expansion / Connectivity
Interfaces 1 x OC-3c/STM-1 - SC single-mode - x 2
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards FCC Class A certified, CSA, EN 60950, EN55022, UL 1950, VCCI-II
Dimensions & Weight
Width 7.1 in
Depth 7.2 in
Height 1.5 in
Weight 1.98 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 95%
Compatibility Information
Designed For Cisco 2691, 2691XM, 3620, 3631, 3640, 3640 BRI Dial Bundle, 3640 VPN Bundle, 3640A, 3640A BRI Dial Bundle, 3660, 3661, 3662, 3662 VPN Bundle, 3745, 3745 VPN Bundle, 3745 VPN Security Bundle
