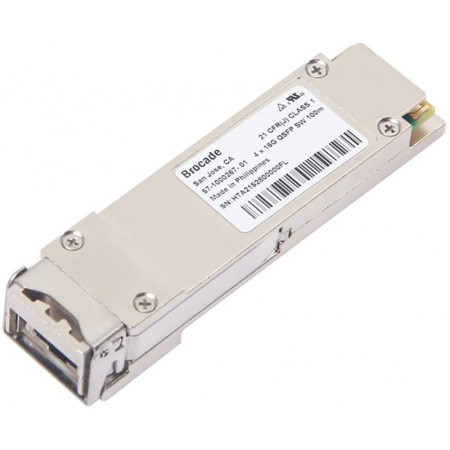

[XBR-000232] Brocade 4x16G FC QSFP+ SWL Transceiver Module

Features

850 nm multimode VCSEL transmitter
Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers,” providing real-time monitoring of:
Transmitted optical power
Received optical power
Laser bias current
Temperature
Supply voltage
Industry-standard MTP 1×12 ribbon cable connector
66 m link length on OM3 fiber, 100 m link length on OM4 fiber
IEC 60825-1 Class 1/CDRH Class 1 laser (eye-safe)
Compliance with Restriction on Hazardous Substances (RoHS) directive
Provides optical breakout capability to 4×16 Gbps Fibre Channel SFP+, 4×8 Gbps Fibre Channel SFP+, or 4×4 Gbps Fibre Channel SFP transceivers at the opposite ends of a link using optical breakout cables
Yellow pull-tab for easy extraction
Required by the FC16-64 port blade for the Brocade DCX 8510 Backbone

Specifications

Brocade Ordering Part Number: XBR-000232
Manufacturing Part Number: 57-1000267-01
Device Type: 4x16G FC QSFP+
Max Data Rate: 64Gbps
Wavelength: 850nm
Max Distance: 100m
Connector: MTP 12-fiber
Cable Type: MMF
DDMI: Yes
Operating Temperature Range: 0 to 70°C (32 to 158°F)
