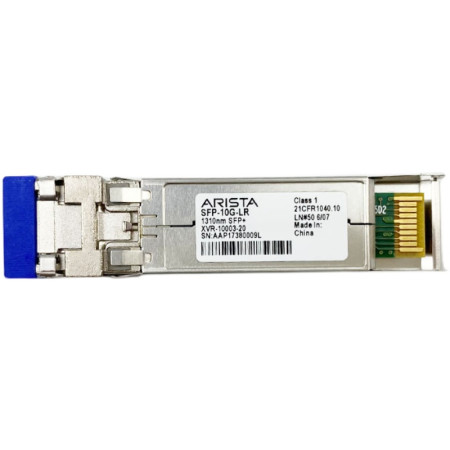

[XVR-10003-20] Arista SFP-10G-LR 10GBASE-LR 1310nm 10km SFP+ Transceiver Module

Specifications

Form Factor: SFP+
Max Data Rate: 10.3125Gbps
Wavelength: 1310nm
Max Cable Distance: 10km
Connector: LC Duplex
Media: SMF
Transmitter Type: DFB
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -8.2~0.5dBm
Receiver Sensitivity: <-14.4dBm
Typical Power Consumption: ≤1W
Receiver Overload: 0.5dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: >3.5dB
EMC (Electro Magnetic Compatibility): Supported
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
